The Role of Solvent Extraction in Biodiesel Production
Biodiesel is an eco-friendly alternative to diesel, produced from renewable resources like vegetable oils, animal fats, and algae. A key element in biodiesel production is solvent extraction – one of the key steps is extracting oil from feedstock, where solvent extraction plays an integral part. In this article, we explore its significance, principles used in solvent extraction as well as commonly utilized solvents during this process and its advantages.
Importance of Biodiesel Production
Biodiesel stands as an alternative fuel that’s made up of renewable biological materials such as vegetable oils, animal fats, and algae; unlike fossil fuels, which emit greenhouse gases at a rate equal to or even exceeding that produced from finite fossil fuel sources. Biodiesel’s production reduces carbon emissions while mitigating climate change impacts by making use of renewable materials like these instead.
Biodiesel provides environmental advantages while simultaneously increasing energy security by diversifying national energy supplies away from imported petroleum. Furthermore, its biodegradability, reduced toxicity, and safer handling make it an attractive solution to help lower emissions in transportation and industrial settings.
Economically, biodiesel production provides jobs and aids agricultural industries by adding value to crops and waste materials. As demand for renewable energy rises worldwide, efficient production methods such as solvent extraction are vital for scaling up biodiesel use.

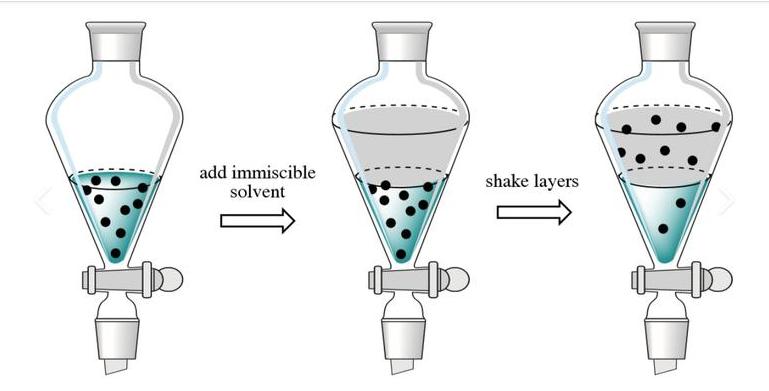

Solvent Extraction: Basic Definition and Principles
Solvent extraction is a widely used technique in biodiesel production for efficiently separating oil from raw feedstock such as seeds, algae, or waste fats. This method relies on the principle of selective solubility, where a chemical solvent dissolves the oil while leaving behind solid residues. The process is highly effective, ensuring maximum oil recovery with minimal waste, making it a preferred choice in industrial biodiesel manufacturing.
How Solvent Extraction Works
The core mechanism involves three key stages:
- Dissolution of Oil – When introduced into crushed or flaked feedstock, an organic solvent such as hexane or ethanol penetrates cellular structures to break down and dissolve oils and triglycerides (oils).
- Separation of Miscella – Once miscella has been extracted from meal material by either filtration or centrifugation, it needs to be separated in order to produce pure oil without impurities. This ensures the extracted oil meets stringent quality control standards.
- Solvent Recovery – As solvents are costly and hazardous substances, they must be recovered for reuse in order to minimize costs and environmental impacts. Distillation processes vaporize solvents to leave behind crude oil; any remaining vaporized solvent is then condensed and recycled, further decreasing costs and environmental impacts.
Solvent extraction outshines mechanical pressing by providing up to 99% oil recovery, making it the preferred method for large-scale biodiesel production. Furthermore, its adaptability to different feedstocks and scalability make solvent extraction an essential cornerstone of sustainable biofuel technology.
Common Solvents Used in Biodiesel Feedstock Extraction
The choice of solvent plays a crucial role in the efficiency, cost, and sustainability of oil extraction in biodiesel production. Various solvents are used depending on the type of feedstock, desired purity, and environmental considerations. Below are some of the most commonly used solvents:
1. Hexane
Hexane is one of the most frequently employed solvents for biodiesel production, due to its highly effective non-polar properties for extracting oils from seeds such as soybeans, canola, and sunflower. With a relatively low boiling point (69 °C), its recovery and reuse through distillation is straightforward. However, due to being petroleum-derived, concerns surrounding its flammability and environmental impacts remain.
2. Ethanol and Methanol
Alcohol-based solvents like ethanol and methanol can be effective choices for biodiesel operations aimed at producing eco-friendly biodiesel fuels on a small scale. Ethanol’s renewable nature and lack of toxic by-products make it especially attractive in such scenarios, while less efficient oil recovery than hexane may make it better compatible with subsequent transesterification steps.
3. Supercritical CO₂
Supercritical carbon dioxide is gaining attention as a green solvent. Under high pressure and temperature, CO₂ becomes a supercritical fluid with excellent solvation power. It offers a non-toxic, non-flammable, and residue-free extraction method. While the equipment cost is higher, its environmental advantages are significant.
4. Petroleum Ether and Acetone
Used primarily in laboratory settings, petroleum ether and acetone are effective for extracting lipids but are less practical for large-scale production due to volatility and safety concerns.
Choosing the right solvent depends on balancing extraction efficiency, cost, environmental safety, and feedstock compatibility.

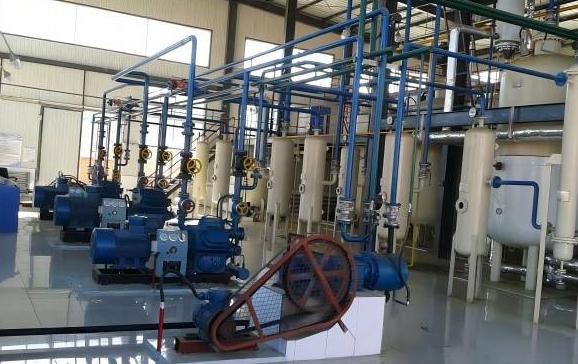

Steps in Solvent Extraction for Biodiesel Production
Solvent extraction is a highly efficient method for obtaining oil from biodiesel feedstocks such as soybeans, rapeseed, and algae. The process involves several key steps to ensure maximum oil recovery while maintaining cost-effectiveness and environmental sustainability.
1. Feedstock Preparation: Before extraction, raw materials must be properly prepared. Seeds or biomass are cleaned to remove impurities, dried to reduce moisture content, and crushed or flaked to increase surface area. This step enhances solvent penetration, improving oil yield.
2. Solvent Application: Once prepared feedstock has been mixed with a suitable solvent (typically hexane, ethanol, or isopropanol), an extraction vessel is used to mix them. As they dissolve the oil-bearing material in miscella form a solution called miscella and optimize temperature and mixing speed are optimized to maximize oil solubility while minimizing solvent usage.
3. Solid-Liquid Separation: After sufficient contact time, miscella (oil + solvent) is separated from its solid residue (meal) by either filtration or centrifugation. Any remaining meal containing traces of solvent may undergo secondary extraction processes or be turned into animal feed.
4. Solvent Recovery: Once transferred to an evaporation system, miscella is heated in order to distill off its solvent content, leaving behind crude oil as waste material. Any surplus solvent vapors generated during distillation are condensed and reused, thereby lowering operational costs and environmental impacts.
5. Oil Refining: Once extracted, crude oil often contains impurities like phospholipids and free fatty acids that require processing using methods such as degumming, neutralization, and bleaching in order to produce high-grade oil suitable for transesterification — the final step in biodiesel production.
6. Waste Management: Solvent-laden meals that remain after desolventization (typically through steam) are desolventized to recover residual solvents while simultaneously adhering to environmental regulations.
By carefully controlling each step—from feedstock preparation to solvent recycling—manufacturers can achieve high efficiency, cost savings, and sustainability in biodiesel processing.
Advantages of Using Solvent Extraction in Biodiesel Production
Solvent extraction offers several key benefits that make it a preferred method for biodiesel production, with higher oil yield being one such advantage.
When compared to mechanical pressing, solvent extraction can recover more of the oil found in feedstocks such as algae, jatropha, or agricultural waste for recycling into biodiesel production, thus making more efficient use of raw materials and decreasing overall production costs.
Solvent extraction also improves oil purity, as solvents are highly selective at isolating oils with fewer impurities, eliminating the need for extensive post-processing steps and providing higher-quality biodiesel with reduced chemical input requirements during refining.
Scalability of solvent extraction systems is also an advantage; these technologies can easily accommodate both small-scale operations and industrial solvent extraction plants for flexible production capacities.
Additionally, many modern systems include solvent recovery units, allowing the solvent to be reused multiple times, thereby reducing environmental impact and operating expenses.
Finally, solvent extraction enables the use of diverse and non-traditional feedstocks, expanding the range of materials that can be converted into biodiesel and supporting more sustainable and flexible production practices.
In A Word
Solvent extraction is an integral step in biodiesel production, providing efficient oil recovery from various feedstocks. When applied properly and using appropriate solvents and processes, solvent extraction can produce high yields with lower costs while supporting renewable energy solutions. As biodiesel demand continues to expand, advancements in solvent extraction technology will only serve to further expand this vital aspect of production.
